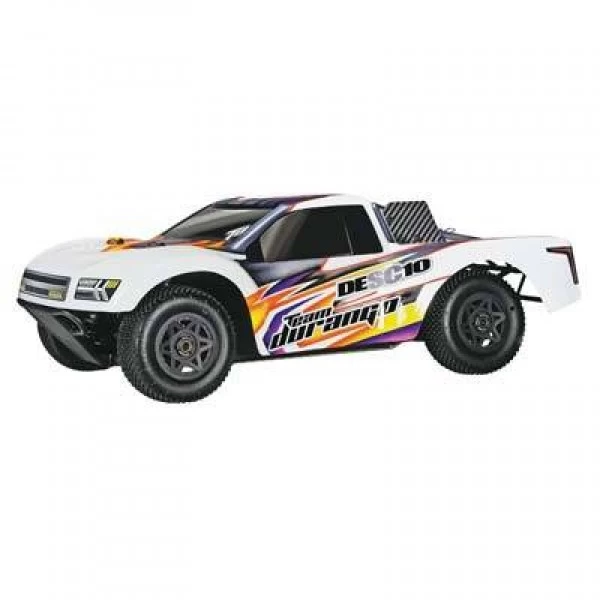

Team Durango 1/10 DESC10 Short Course EP 4WD Kit

FEATURES

Chassis: Hard anodized 7075 T6 aluminum, 0.12″ (3mm) thick
Drive: Four wheel shaft with center U-joints for maximum drivetrain
efficiency and minimal heat transfer, rear mud guards help keep
drive shafts clean
Shocks: 16mm Big Bore aluminum body with vented caps, and a choice of
constant volume and emulsion bodies
Shock Towers: 0.20″ (5mm) thick aluminum
Suspension: Fully adjustable pivot ball with square hinge pin inserts
for more options for front end mods, galvanized components for
protection against oxygenation, Active Caster Inserts for easy
configuration changes
Differentials: Ultra lightweight bevel gear type with composite cross
shafts for increased acceleration and durability
Motor Mount: Aluminum, with step-down washers for secure mounting for
550 size motors as well as traditional 550 size SC motors
Steering: Servo saver and ball bearing equipped, also has adjustable
Ackermann, Ackermann refers to the effect of inner front wheel
rotating faster than the outer front wheel during turns
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle



INCLUDES

DESC10 Short Course Truck Kit with Shocks, Decal Sheet, Adjustable
Motor Mount and Instructions



REQUIREMENTS

Radio: 2-channel with high-torque steering servo
Motor: 550-size, or larger 1/8 scale brushless motor
Pinion Gear: 48P, number of teeth compatible with selected motor
LiPo Battery: 2S 7.4V, at least 5000mAh
Battery Charger: Compatible with selected batteries
Tires: 1/10 scale short course
Wheels: 1/10 scale short course
Body: 1/10 scale short course truck
Charging bag, building and track equipment, silicone shock and diff
oil



SPECIFICATIONS

Length: 21.5″ (546mm)
Width: 11.6″ (294mm)
Height: 7.5″ (190mm) approximately
Weight: 7.5lbs (3.4kg) depending on electrical items installed
Wheelbase: 12.7″ (324mm)
